Milita HB-FW30 Security Fencing
ISO 22343-1:2023 & IWA 14-1
K4 M30
P1, ZERO Penetration
The Milita HB-FW30 Security Fencing is a brand new independently developed and manufactured HVM series product by ZASP Its lower structure resists vehicle impact and absorbs kinetic collision energy, while the upper fencing prevents human climbing, delivering dual-level security against both vehicle intrusion and human trespassing. With a shallow depth of only 0.5 meters underground, the actual concrete pouring depth is 0.3 meters, and the remaining 0.2 meters can be filled with grass mats or other materials for better aesthetic appearance.
It has obtained dual certification by passing the ISO 22343-1:2023 and IWA 14-1 crash tests, capable of effectively stopping a 7,200 kg truck travelling at 48km/h. P1, ZERO Penetration.
The shallow-embed design greatly reduces earth-excavation work and makes it suitable for diverse perimeter-protection scenarios. For finishes, the upper metal railings are available in powder-coated carbon steel or stainless steel options, with custom spray-coating colours upon request.
Dimension


Specification

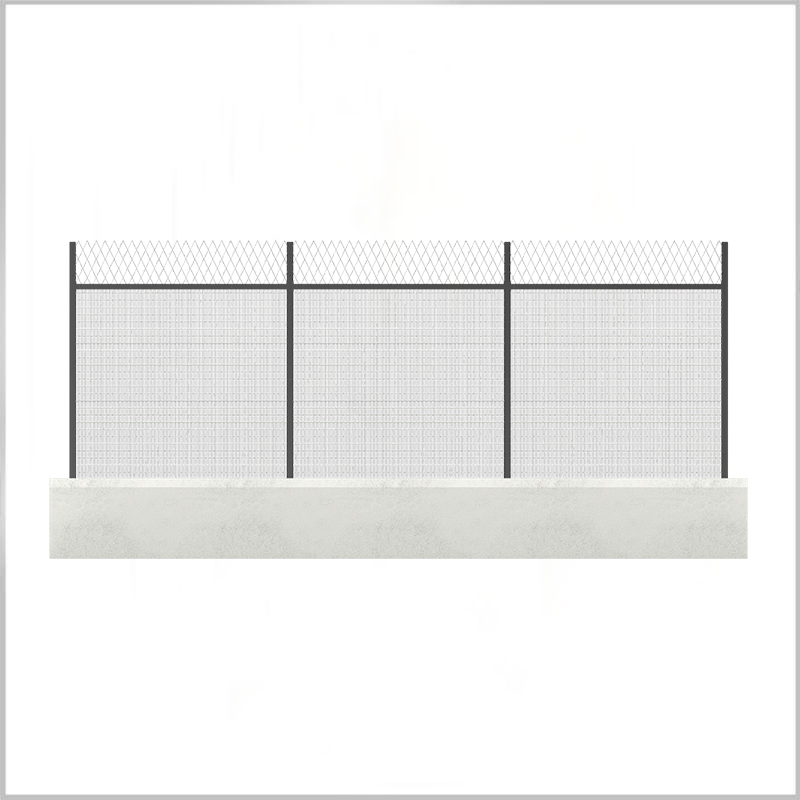

| PRODUCT | Milita HB-FW301 Low Wall with Fence |
| STANDARD | ISO 22343-1:2023 Wall V/7200[N2A]/48/90:0.0/6.9 IWA 14-1:2013 Wall V/7200[N2A]/48/90:0.0 |
| VEHICLE PENETRATION | 0.0 m P1 penetration class |
| WALL LENGTH | ≥7700mm |
| WALL THICKNESS | 250mm |
| FOUNDATION DEPTH of WALL | 500mm |
| IMPACT TEST HEIGHT | 3500mm |
| COLOR | Can be customized |


The Milita HB-FW30 Security Fencing is a cutting-edge product independently developed and manufactured by ZASP. This innovative HVM series features a dual-layered security design that combines a lower structure resistant to vehicle impact with an upper fencing system that prevents human climbing. This dual-level approach effectively protects against both vehicle intrusion and human trespassing.
With a shallow embedment depth of only 0.5 meters, the actual concrete pouring depth is 0.3 meters, allowing the remaining 0.2 meters to be filled with grass mats or other materials for enhanced aesthetic appeal.
The Milita HB-FW30 has obtained dual certification by passing the ISO 22343-1:2023 and IWA 14-1 crash tests, demonstrating its capability to effectively stop a 7,200 kg truck traveling at 48 km/h. It features a P1 rating for zero penetration.
This shallow-embed design greatly reduces earth excavation work, making it suitable for diverse perimeter protection scenarios. For finishes, the upper metal railings are available in powder-coated carbon steel or stainless steel options, with custom spray-coating colors available upon request.
For more information or to request a quote, please contact us.
