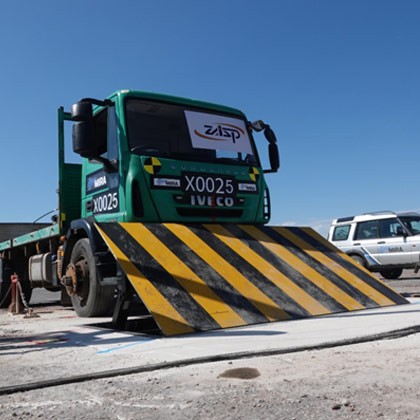

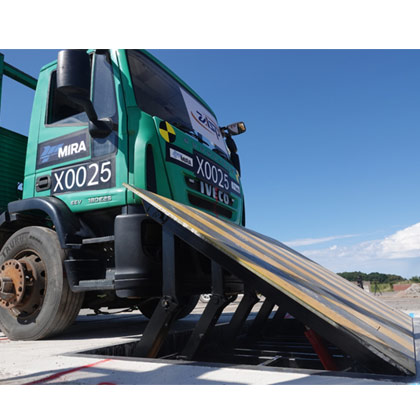

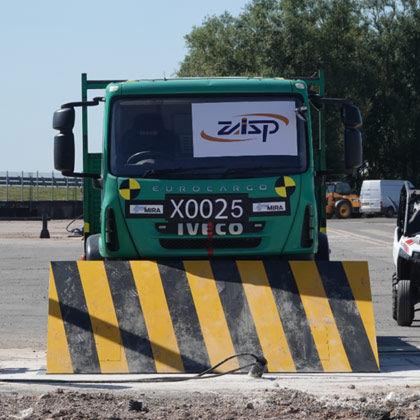

Suprema RB-SM501 impact test video by IWA 14-1 7500kg / 80kmh, equal ATSM K12/M50

Zero penetration

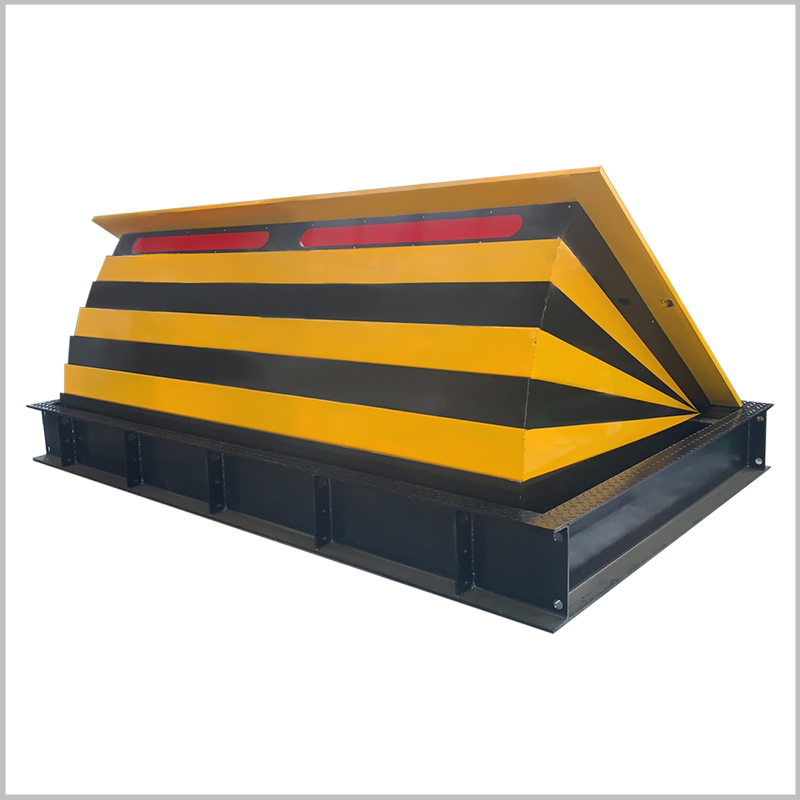

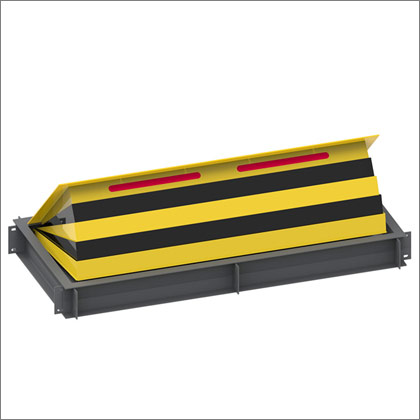

Hydraulic Wedge Barriers

Secure your premises with ZASP, a leading hydraulic wedge barriers manufacturer. Our High Security Shallow Mount Suprema Wedge Barrier SM501-1000 is the ultimate solution for safeguarding vulnerable entry points. Engineered with innovative features, it eliminates the need for public services and reduces installation complexity. This road blocker can be installed at ground level on various terrains. Our hydraulic wedge barriers feature an electron-hydraulic drive unit for quick and efficient access control, with a typical rising and descending time of 3-5 seconds. For emergency situations, the optional EFO system offers a swift 1.5-second response. Invest in ZASP’s Security Wedge Barriers to protect your property and people. Contact us now for more information.

Key Benefits of the RB-SM501 Wedge Barrier System

• Crash Rating: Certified equivalent to ASTM M50 / K12, zero penetration under IWA 14-1 test at 80km/h with 7500kg truck

• Shallow Mount Design: Requires only 300mm depth, ideal for retrofit and urban installations

• Rapid Deployment: Rising time of 3–5 seconds, EFO activation ≤1.5s in emergencies

• Built for Durability: Dual hydraulic oil cylinders & 25mm steel top plate support up to 200 tons

• IP68 Rated: Fully weatherproof & sealed for reliable outdoor operation

• Seamless Integration: Compatible with loop detectors, traffic lights, RFID, intercom, and smart access systems

Hydraulic Wedge Barriers Advantages

1.Dual hydraulic oil cylinders, high stability and durability

The dual hydraulic oil cylinders are a key feature of the product that offer several advantages. Firstly, they provide superior stability and support during heavy loading, ensuring that the load is evenly distributed across the surface of the platform. Secondly, they offer high durability, as the hydraulic system is designed to withstand heavy use and minimize wear and tear on the cylinders. This ensures that the product remains reliable and functional over the long term, even in high-stress applications. Additionally, the dual hydraulic oil cylinders allow for precise control over the height and angle of the platform, making it easier to position loads and optimize workflow efficiency.

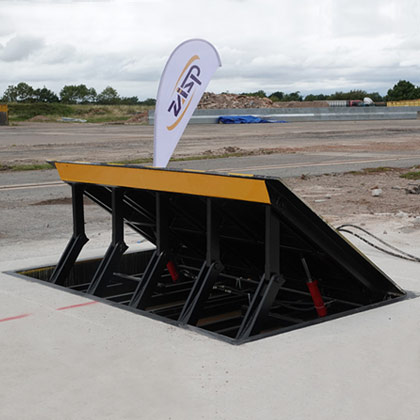

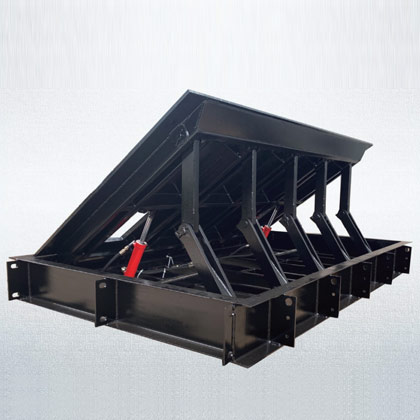

K12 road blocker dual hydraulic oil cylinders

2. Top Plate 25mm(±2) thickness

· National standard high-strength steel for the top plate;

· Heavy rolling without deformation;

· Skid resistance pattern-steel surface;

· Static loading capacity: ≤100 tons

Passing loading capacity: ≤200 tons;

The top plate of the product is made from high-strength steel that meets national standards for quality and durability. This ensures that the platform is able to withstand heavy loads without deformation or damage. The 25mm thickness of the top plate is carefully calibrated to provide maximum support and stability, while remaining lightweight and easy to maneuver. The heavy rolling design of the top plate further enhances its strength and stability, ensuring that it can handle even the most demanding industrial applications. Additionally, the skid resistance pattern on the steel surface helps to prevent slippage and ensure safe working conditions for operators.

3. Skid resistance pattern-steel surface

The skid resistance pattern on the steel surface of the product is a key safety feature that helps to prevent accidents and injuries. The pattern creates a non-slip surface that provides excellent traction, even in wet or slippery conditions. This is particularly important in industrial settings where spills or moisture can create hazardous working conditions. The steel surface of the platform is also highly durable, able to withstand heavy use without showing signs of wear and tear. This helps to ensure that the platform remains safe and reliable over the long term, even in high-stress environments.

K12 road blocker skid resistance pattern-steel surface

K12 road blocker skid resistance pattern-steel surface

Hydraulic Wedge Barriers Features

The hydraulic wedge barriers and security wedge barriers are highly effective security solutions for protecting critical infrastructure, high-risk facilities, and public spaces from unauthorized vehicular access. Here are some features of security wedge barriers:

High-Stability and Durability: The dual hydraulic oil cylinders used in the wedge barriers provide high stability and durability, ensuring that they can withstand heavy loads and high-speed vehicular impacts.

1. Effective Protection: The intercept height of the wedge barriers is 1000mm (±10mm), providing effective protection against high-speed vehicular impact. Additionally, the wedge barriers have a static loading capacity of ≤100 tons and a passing loading capacity of ≤200 tons, which further increases their effectiveness.

2. Quick Response: The rising time of the wedge barriers is 3-5 seconds, ensuring quick response and effective protection against high-speed vehicular impact.

3. Reliable Operation: The hydraulic movement principle used in the wedge barriers ensures smooth and reliable operation, which is crucial for maintaining effective security measures.

4. Safety Features: The wedge barriers are equipped with LED warning lights that provide clear and visible indications of the status of the barrier, ensuring maximum safety for pedestrians and drivers. Additionally, the manual handling device and the E.F.O circuit for emergency rising ensure that the barriers remain functional even in the event of a power failure or other emergency situation.

5. Customizable: The wedge barriers are available in yellow and black color, and RAL color options are also available, making them customizable to the specific needs and requirements of the facility.

Overall, the hydraulic wedge barriers and security wedge barriers are reliable, effective, and customizable security solutions that provide effective protection against unauthorized vehicular access.

Specification

Application

Hydraulic wedge barriers and security wedge barriers can be applied in various high-security facilities and critical infrastructure sites, such as:

1. Government buildings: Government buildings, such as the White House or the US Capitol, require high-security measures to protect against potential terrorist attacks. Hydraulic wedge barriers and security wedge barriers can be installed at entry points to provide effective protection against unauthorized vehicular access.

2. Military installations: Military bases and installations need to be secured against potential threats from outside. Hydraulic wedge barriers and security wedge barriers can be installed at the entry points to prevent unauthorized access.

3. Airports: Airports require robust security measures to prevent unauthorized access to restricted areas, such as runways or boarding gates. Hydraulic wedge barriers and security wedge barriers can be installed at the entry points to restrict access and ensure the safety of passengers and staff.

4. Stadiums and arenas: Stadiums and arenas need to be secured against potential terrorist attacks or vehicular accidents. Hydraulic wedge barriers and security wedge barriers can be installed at the entry points to provide effective protection against unauthorized vehicular access.

5. Critical infrastructure sites: Critical infrastructure sites, such as power plants or water treatment facilities, require high-security measures to prevent potential terrorist attacks or sabotage. Hydraulic wedge barriers and security wedge barriers can be installed at the entry points to ensure effective protection against unauthorized vehicular access.

Overall, hydraulic wedge barriers and security wedge barriers can be applied in various high-security facilities and critical infrastructure sites to provide effective protection against unauthorized vehicular access, ensuring the safety and security of the premises and the people inside.

Road Blocker Installation

Image for layout of SM501 shallow mount wedge barrier

K12 road blocker installation image

K12 road blocker dimensions

Available Items

Emergency fast raise system;

Emergency buttons with lock down;

Accumulator systems for hydraulic operation in power failure conditions;

Access and intercom systems;

UPS backup for the electrical system;

Interlocking systems to give air-lock type protection on sites with higher threat levels;

Inductive loop systems;

Traffic lights and back indications systems;

Integral inset warning lights in;

A3 steel cover plate with anti-slip coating;

E.F.O. emergency start-up circuit (about 1.5 seconds);

Equipment for manual operation;

Heat-resistant;

Traffic light with two lights (green-red);

Loop inductive detector;

Inductive loop.

Our products have a wide range of applications, if you want to know more, welcome to click here! Case Studies

We are look forward to working with you!

As a leading manufacturer specializing in high-security products, Beijing ZhuoAoShiPeng Technology Co., Ltd. is proud to offer hydraulic wedge barriers and security wedge barriers. These products are designed to provide effective protection against unauthorized vehicular access, making them ideal for use in high-security facilities and critical infrastructure sites.

Hydraulic wedge barriers and security wedge barriers are designed with a dimension of (Intercept width+200mm)L2000mmW300mmH(Depth) and have an intercept height of 1000mm(±10mm). They are available in two different sizes – 4M with a front folding skirt and 6M without a front folding skirt. The top plate thickness is 25mm(±2mm), and the product weight is 3100KG for the 4M version and 4200KG for the 6M version.

These products are based on a hydraulic movement principle, which provides reliable and consistent performance. They have a rising time of 3-5 seconds, making them quick and efficient. The hydraulic wedge barriers and security wedge barriers come in yellow and black color, but RAL color options are also available.

Hydraulic wedge barriers and security wedge barriers are designed for intensive use, ensuring that they are robust enough to withstand continuous use in high-security areas. They come with a special anti-corrosion treatment, including hot dip galvanization, pure epoxy outfitting primer, and polyurethane topcoat. This ensures that they can withstand harsh weather conditions and remain in excellent condition for years to come.

These products have a loading capacity of static loading capacity: ≤100 Tons and passing loading capacity: ≤200 Tons, ensuring that they can withstand the weight of most vehicles. They come with an E.F.O circuit for emergency rising, which ensures that they can rise within 2 seconds in case of power failure.

The hydraulic wedge barriers and security wedge barriers also come with an IP68 protection class, ensuring that they can withstand dust, dirt, and water. They are equipped with LED warning lights, a device for manual handling, and a control system based on PLC control, linkage work, and voltage for the control unit is 200V, triphasic, 50HZ. The rated power of the product is 7.5Kw, and the HPU dimension is Without Roof: 1200Wmm900Dmm1700mm; With Roof: 1260Wmm960Dmm1797Hmm.

At ZhuoAoShiPeng, we are committed to providing the highest quality products and services to our customers. Our hydraulic wedge barriers and security wedge barriers are manufactured with the highest quality materials and are designed to provide reliable and effective protection against unauthorized vehicular access. Contact us today to learn more about our products and services.
